Discord Bot Pipeline - GCP Setup

5 minute read

This post is part 2 of a 10 part series:

Creating an organization in GCP is a great way to organize your projects. It will also enable us to create a separate project that will house both our Terraform state (described later in this series) and a service account that has permissions to apply Terraform configuration across all of our projects. For just a single discord bot application this is overkill, but becomes very useful to expedite bootstrapping other projects you may have. Creating an organization and additional project is basically free (especially if you already have a domain name registered), so there’s not much downside. I am using Cloud Identity for this because it’s the cheapest option and I am not currently running a Google Workspace.

Cloud Identity needs to be tied to a domain, which I have happen to have created for this blog, thompsonja.com. I happen to also use Google Domains for domain management, although any registrar of your choice will do.

Refer to the following resources from GCP to set up Cloud Identity.

  • https://cloud.google.com/resource-manager/docs/creating-managing-organization
  • https://cloud.google.com/identity/docs/set-up-cloud-identity-admin

These images may not be up-to-date, but highlight the general process I took to create a Cloud Identity:

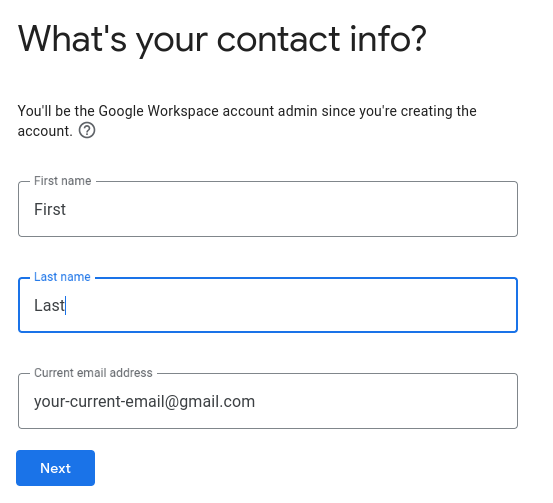

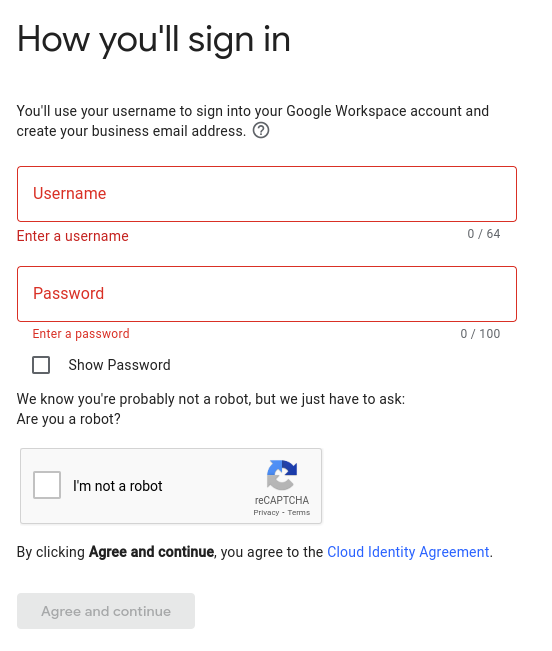

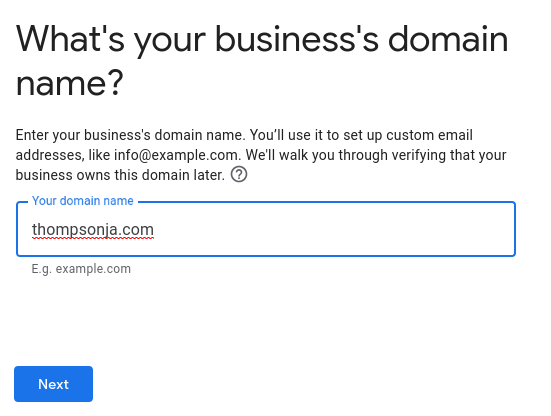

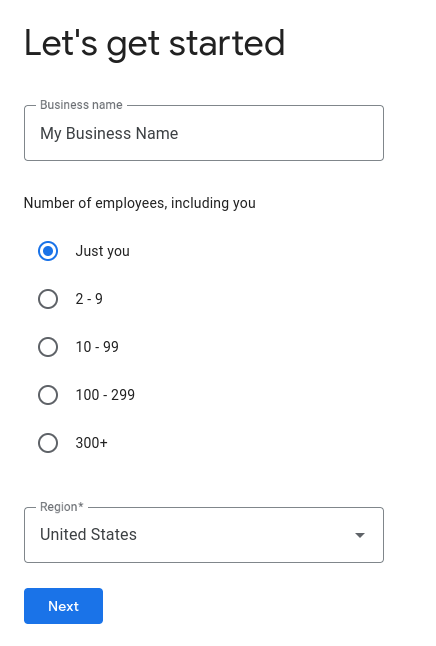

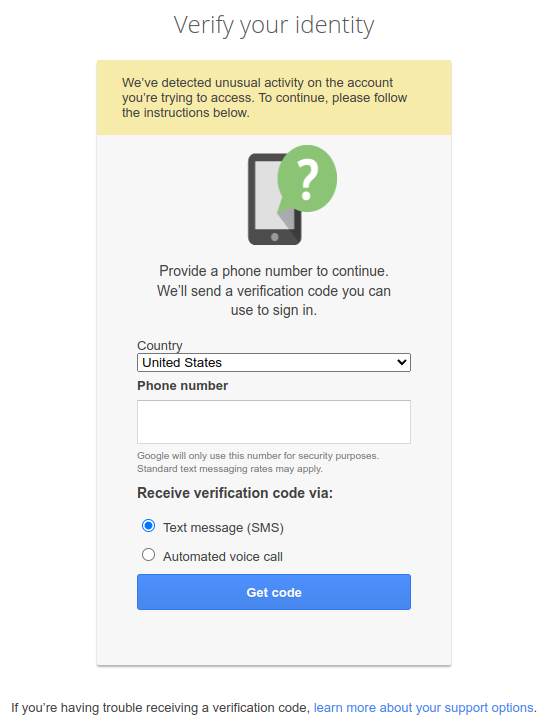

Setting up a business. The name isn’t super important, but I did set the number of employees to “Just You.” The next steps are pretty straightforward, creating an admin account, associating the Cloud Identity with a domain name, and adding two factor auth:

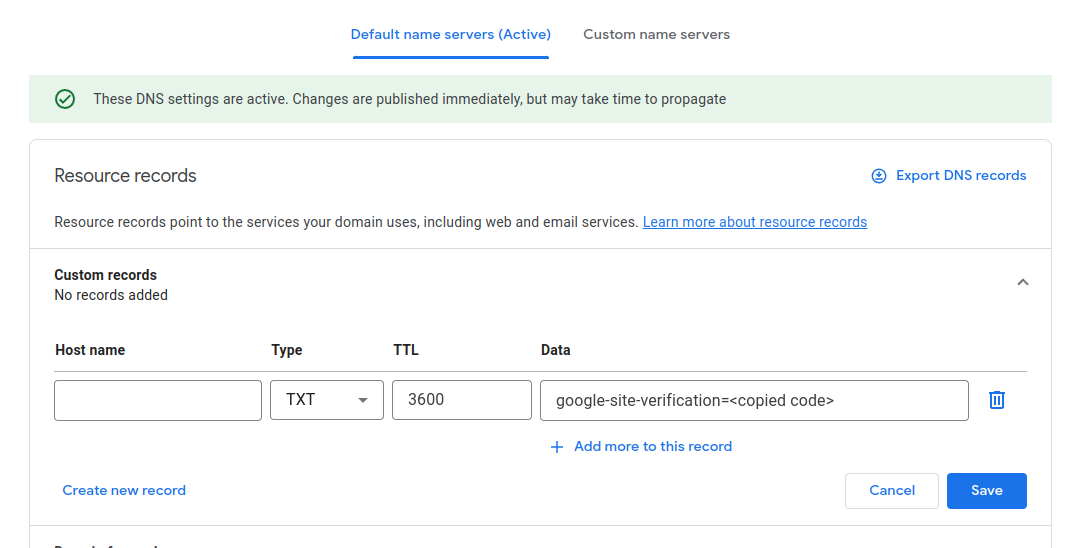

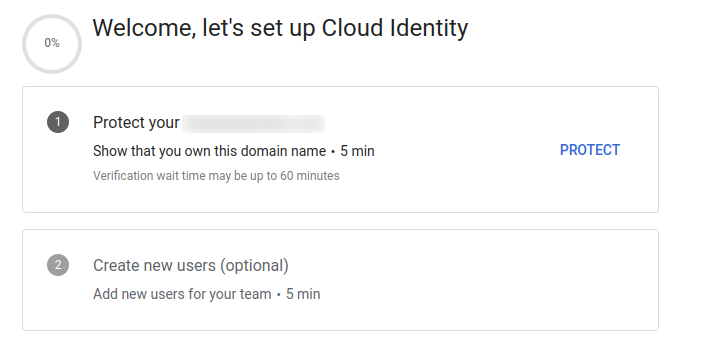

Next, you’ll need to prove to GCP that you own the domain, which is done by adding a TXT record to the DNS settings of your domain. Clicking the Protect button as shown will bring up a page with the TXT entry that should be added, which I added to my domain registered with Google. It’ll take about an hour to fully verify this DNS update.

Once you finish creating a Cloud Identity, navigate to the cloud console and a GCP organization should be created for you automatically.

You’ll also want to set up billing by navigating to https://console.cloud.google.com/billing. Usually GCP will run a new user trial credit option, so take advantage of that if available.

Now we can start setting up our new organization by adding a new GCP project. This project will be in charge of running Terraform commands.

First, make sure you have gcloud installed on your machine. Follow the instructions here if you don’t have it installed already: https://cloud.google.com/sdk/docs/install

Once you have it installed, run the following command in a terminal:

gcloud auth login

And login with your newly created email you created during the Cloud Identity creation process. Once completed, you can verify success with:

gcloud auth list

Run the following:

# Install jq for parsing json data from commands if you don't have it already
sudo apt-get -y install jq

GCP_BILLING_ACCOUNT_ID="$(gcloud beta billing accounts list --format=json \
      | jq -r '.[0].name' \
      | cut -d'/' -f2)"

GCP_ORGANIZATION_ID="$(gcloud organizations list --format=json \
      | jq -r '.[0].name' \
      | cut -d'/' -f2)"

# Replace DOMAIN with something unique to you, like your domain
DOMAIN="thompsonja"
TF_ADMIN="${DOMAIN}-tf-controller"
TF_CREDS="${HOME}/.config/gcloud/${TF_ADMIN}.json"

This performs some variable setup. TF_ADMIN will be the name of the GCP project we create and must be globally unique, hence why I prefixed it with my domain name. Also know that there is a character limit on GCP project names, so be cautious of that if DOMAIN is too long. TF_CREDS will be where a private service account key will be created. BE CAREFUL with this key, as it will have admin rights over any generated project.

The first thing we need to do is create the Terraform GCP project and link it to our billing account:

gcloud projects create ${TF_ADMIN} \
  --organization ${GCP_ORGANIZATION_ID} \
  --set-as-default

gcloud beta billing projects link ${TF_ADMIN} \
  --billing-account ${GCP_BILLING_ACCOUNT_ID}

Then we can create the service account and download the key:

gcloud iam service-accounts create terraform \
  --display-name "Terraform admin account"

gcloud iam service-accounts keys create ${TF_CREDS} \
  --iam-account terraform@${TF_ADMIN}.iam.gserviceaccount.com

We grant this service account a few bindings onto our GCP project, including storage.admin, resourcemanager.projectCreator, and billing.user. These are important as we will be using GCP Cloud Storage to store the Terraform state in a storage bucket and will need permissions to create projects and assign billing on newly created projects. Run the following:

gcloud projects add-iam-policy-binding ${TF_ADMIN} \
  --member serviceAccount:terraform@${TF_ADMIN}.iam.gserviceaccount.com \
  --role roles/viewer

gcloud projects add-iam-policy-binding ${TF_ADMIN} \
  --member serviceAccount:terraform@${TF_ADMIN}.iam.gserviceaccount.com \
  --role roles/storage.admin

gcloud organizations add-iam-policy-binding ${GCP_ORGANIZATION_ID} \
  --member serviceAccount:terraform@${TF_ADMIN}.iam.gserviceaccount.com \
  --role roles/resourcemanager.projectCreator

gcloud organizations add-iam-policy-binding ${GCP_ORGANIZATION_ID} \
  --member serviceAccount:terraform@${TF_ADMIN}.iam.gserviceaccount.com \
  --role roles/billing.user

Now we can create the Cloud Storage bucket that will contain the Terraform state. Buckets also need to be globally unique, so it’s a safe bet to use the GCP project name as the bucket name. We also set versioning on so that we can revert Terraform state back if we need to:

gsutil mb -p ${TF_ADMIN} gs://${TF_ADMIN}
gsutil versioning set on gs://${TF_ADMIN}

Finally, we enable some GCP services that we may need in later projects. This is because we cannot use the service account to enable a service in another project if that service is not also enabled in the admin project:

gcloud services enable appengine.googleapis.com
gcloud services enable artifactregistry.googleapis.com
gcloud services enable cloudbuild.googleapis.com
gcloud services enable cloudresourcemanager.googleapis.com
gcloud services enable cloudbilling.googleapis.com
gcloud services enable firebase.googleapis.com
gcloud services enable firestore.googleapis.com
gcloud services enable iam.googleapis.com

Now that we’ve completed GCP setup, we can leverage GitHub actions to provision new GCP projects and run Terraform commands!
